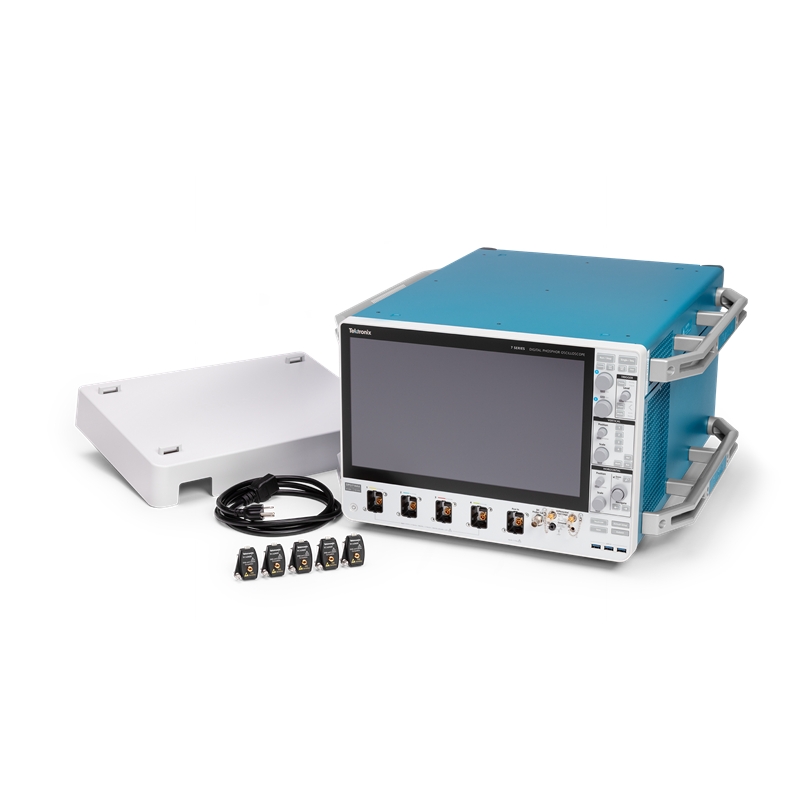

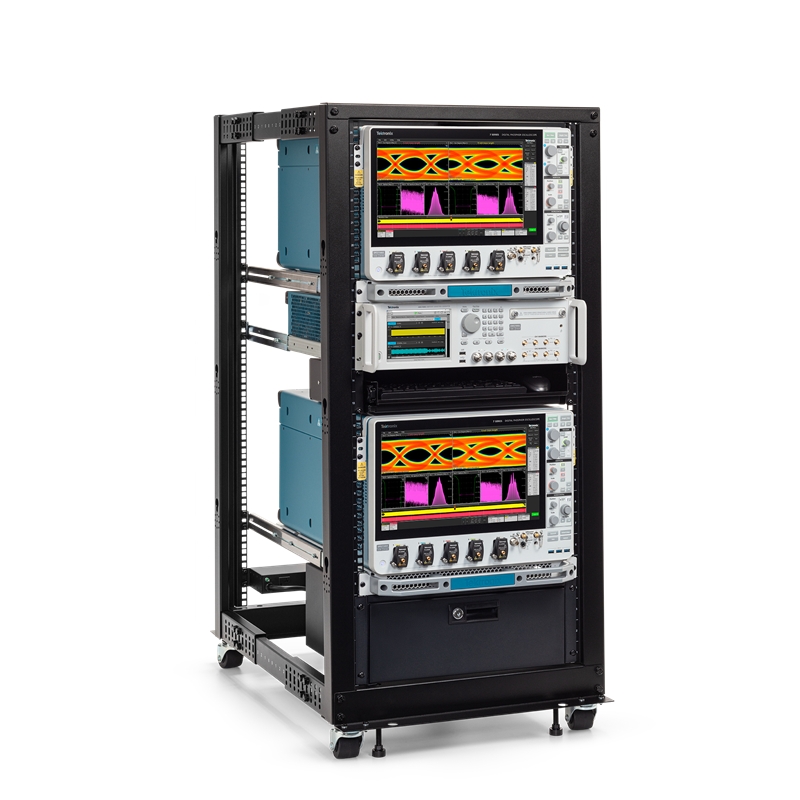

New!! Tektronix 7 Series DPO Digital Phosphor Oscilloscope

A new series of oscilloscopes that takes your design to the next level. With a high-resolution 10-bit ADC, it delivers exceptional vertical accuracy for precise waveform representation. Perform in-depth analysis such as jitter and power measurements with confidence. Featuring built-in Spectrum View, it enables seamless time and frequency domain signal analysis. The high-resolution touchscreen UI is intuitive and user-friendly, giving you quick access to all functions for faster and more efficient workflow.

Category: Tags: ,

Model

 Analog Bandwidth Sample Rate Record Length Analog Channel
DPO714AX 8 GHz to 25GHz 125GS/s Up to 2G points

4



Key Feature
Input channels

  • 4 TekConnect® each with TCA292D 50 Ω 92 mm input adapter
  • 1 Aux In (TekConnect) with TCA292D 50 Ω 92 mm input adapter

Bandwidth (all analog channels)

  • 8 GHz, 10 GHz, 13 GHz, 16 GHz, 20 GHz, 25 GHz (upgradable)

Sample rate (all analog channels)

  • Real-time: 125 GS/s
  • Interpolated: 12.5 TS/s

Record length (all analog channels)

  • 500 Mpoints standard
  • 1 or 2 Gpoints optional

Vertical resolution

  • 10-bit ADC with high ENOB

Standard analysis

  • Measurements: 36

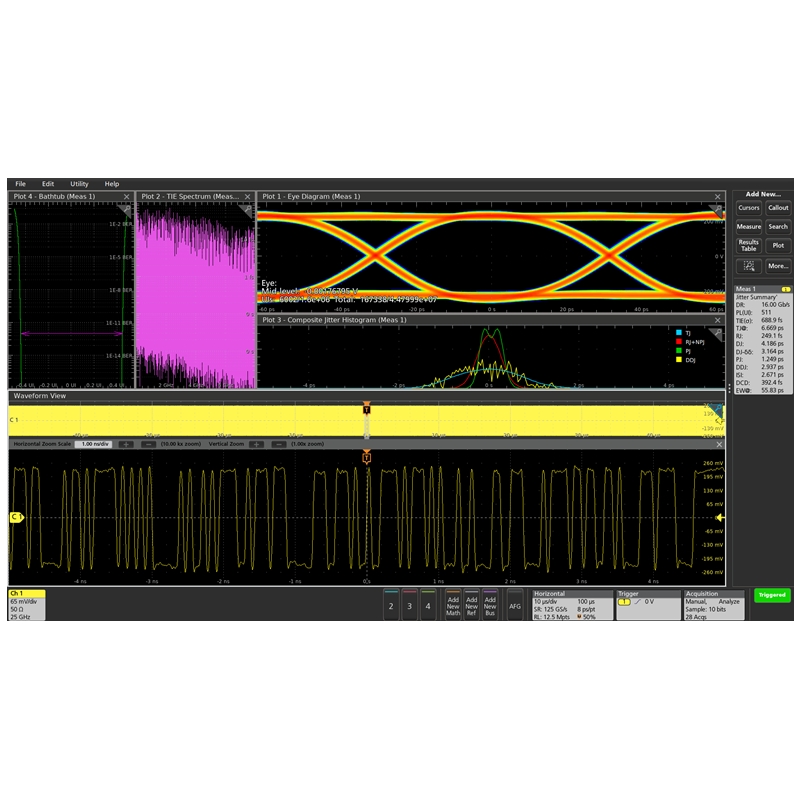

  • Plots: Time Trend, Histogram, Spectrum, and Phase Noise
  • Math: Basic waveform arithmetic, FFT, and advanced equation editor
  • Search: Search on any trigger criteria
  • Jitter: TIE and Phase Noise

Trigger frequency counter (free with product registration)

  • 11-digit

Display

  • 6 inch (396 mm) TFT color
  • High Definition (1,920 x 1,080) resolution
  • Capacitive (multi-touch) touchscreen

Connectivity

  • LAN (10G Ethernet on SFP+ and 10/100/1000 Base-T Ethernet on RJ-45)
  • USB 0 Host (3 front & 4 rear), USB 3.0 Device (1 port rear)
  • DisplayPort, HDMI
  • Sample Clock In/Out, Ext Ref In, Ref Clock Out, Sync In/Out, Aux Out

e*Scope®

  • Remotely view and control the oscilloscope over a network connection through a standard web browser

Warranty

  • 1 year standard



Applications
The 7 Series’ low noise, high fidelity signal acquisition is critical for high bandwidth applications such as:

  • Advanced research & investigation of transient phenomena
  • Digital design & validation including signal integrity, jitter, and timing analysis
  • Memory bus analysis and debug
  • Compliance testing and debug of high speed serial interfaces for industry standards
  • Analysis of signal integrity and power integrity in artificial intelligence datacenter development
  • Spectral analysis of transient or wide-bandwidth RF
