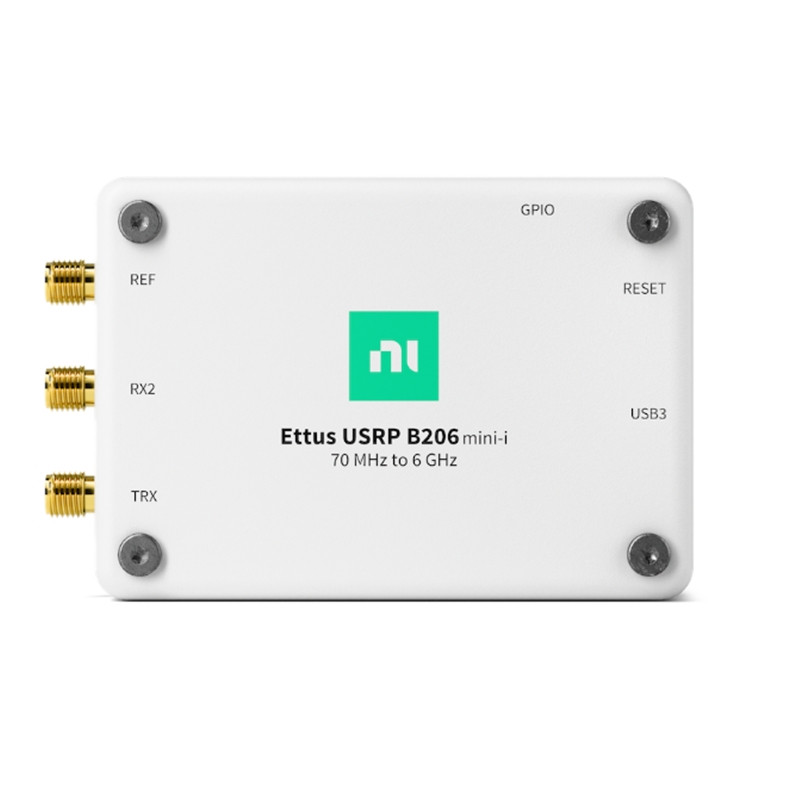

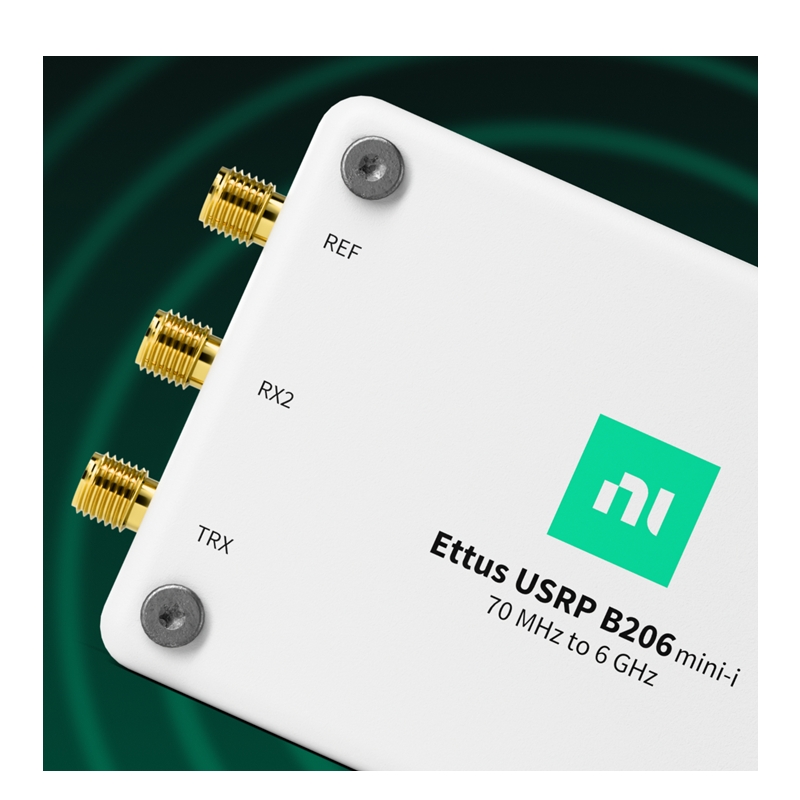

NI Ettus USRP B206mini-I (789155-01)

– Connect to a laptop with a Type C USB connector
– Flexible RF front end for applications up to 6 GHz
– The open-source UHD driver lets you choose the software that works best for you

Technical Specifications :

• Frequency Range : 70 MHz to 6 GHz
• Bandwidth = Up to 56 MHz
• Transmit/ Receive = 1 Tx, 1 Rx
• FPGA : Spartan-6 LX150
• Interface : USB 3.0 Type C (bus-powered)
• Compact Design : 84.3 x 51.6 x 8.4 mm, 25 g (board only) ,85 x 55.7 x 18 mm, 108 g (board in enclosure)
• Synchronization : 10 MHz or PPS reference
• Control : GPIO, JTAG
• Temperature Range : 0 to 40°C (board only) ,-40 to +75°C (board in enclosure)

Software Specifications :

• Development Tools : UHD, GNU Radio, Python, C/C++, LabVIEW
• Software Compatibility : UHD Driver (open source)
