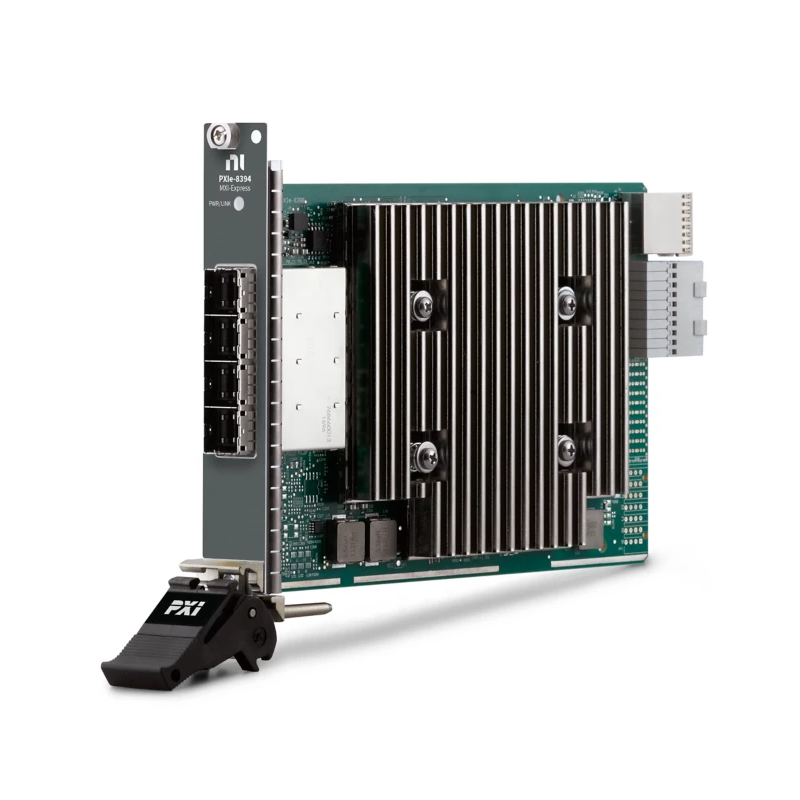

PXIe-8394, x8 Gen 3 MXI-Express DaisyChain Interface (785157-01)

PXIe, x8, Gen 3 MXI-Express Daisy-Chain Interface, PXI Bus Extension Module
The PXIe-8394 allows you to create multichassis PXI systems that interface to the same computer. You can use the PXIe-8394 to daisy chain up to eight PXI chassis to the same system computer, which can be a PXI Controller or a PC connected with a Device for PXI Remote Control. You can also extend the PXI system by connecting RAID Arrays, Software Defined Radio Devices, and Software Defined Reconfigurable Radio Devices.

Category: Tags: ,



Key product
Bus Connector: PXI Express
MXI Communication Level: MXI-Express Gen3 x8
MXI Bandwidth: 7.9 GB/s
Supported Cable Type: Copper

Environment

  • Maximum altitude : 2,000 m
  • Pollution Degree : 2

Operating Environment

  • Ambient temperature range : 0 °C to 55 °C
  • Relative humidity range : 10% to 90%, noncondensing

Physical

  • Dimensions : 10.7 cm × 17.5 cm (4.4 in. × 6.9 in.)
  • Maximum cable length : 3 m
  • Slot requirements : One peripheral slot (PXI Express or CompactPCI Express)
