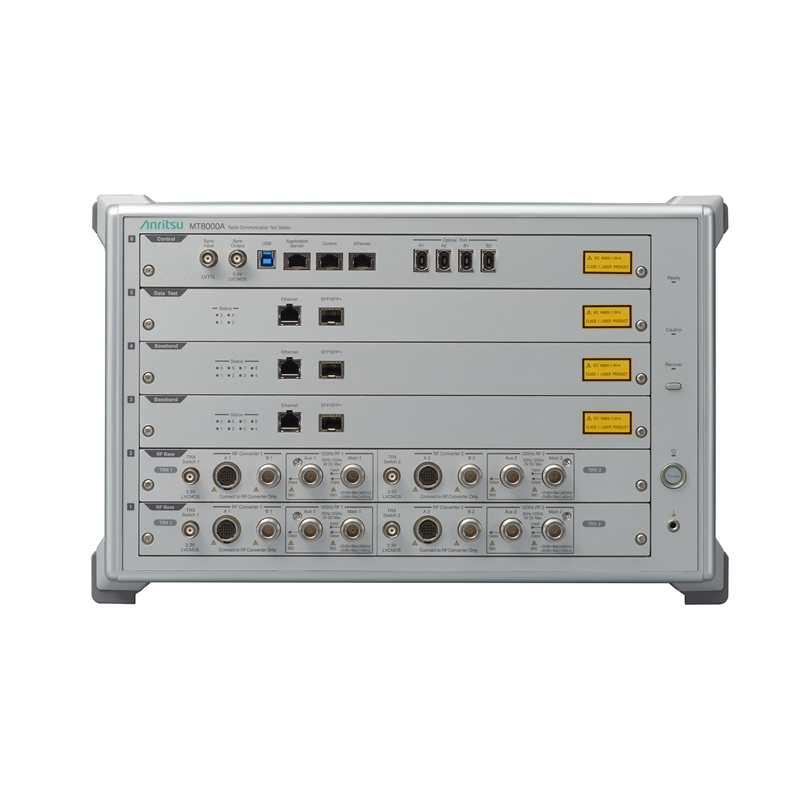

Radio Communication Test Station MT8000A

All-in-One Support for RF Measurements, Protocol Tests and Applications Tests in FR1 (to 7.125 GHz) and FR2 (Millimeter-Wave) Bands
With a 5G base station emulation function, a single MT8000A test platform supports both the FR1 (to 7.125 GHz), including band n41, and the FR2 (millimeter-wave) bands used by 5G. Combining it with the OTA Chamber enables both millimeter-wave band RF measurements and beamforming tests using call connections specified by 3GPP. In addition, the intuitive, state-machine-based GUI supports various application tests such as handover tests, quasi-normal and abnormal network tests. Moreover, maximum IP data throughput can be measured for a wide variety of band, CA, and MIMO combinations.

Category: Tags: , , , , ,



Key Features
  • All-in-One Support for RF Measurements and Protocol Tests in FR1 (to 7.125 GHz) and FR2 (Millimeter Wave) Bands
  • Supports mm-wave band RF measurements and beam forming tests combined use with the RF chamber.
  • Flexible Platform using Modular Architecture
  • Supports Existing LTE Test Environment
  • Supports various functional tests by GUI operation only without requiring difficult scenario development
  • Measures maximum IP data throughput for wide variety of band, CA, and MIMO combinations
