EA-BT 20000 Series Battery Testers

Optimized for battery testing and battery simulation, the EA-BT 20000 Series are fully bidirectional supplies, allowing full control for both discharging and charging battery cells, packs, or modules. A max power of 30kW and the ability to parallel channels for up to 1800 A allows you to scale a solution to meet your needs. Included regenerative technology recovers energy during battery discharge or while simulating a charging battery and feeds that energy back into the local grid that would otherwise be lost as heat, reducing operating expenses and HVAC costs.

Category: Tags: , , , , , , , ,
Model Power Voltage Current Range Channels
EA-BT 20000 4U 0–30 kW 0–2000 V 0–1000 A per channel 1 Channel
EA-BT 20000 3U 0–15 kW 0–2000 V 0–600 A per channel 1 Channel
EA-BT 20000 Triple 4U 4 kW to 10 kW 0–920 V 0–40 A up to 0–600 A per channel 3 Channels



Battery Testing
Run a benchtop test or configure an automated system for production testing of batteries as cells, modules, or packs. Determine SOH (State-of-Health), second life classification, and perform EOL (End-of-Line) testing. An efficiency of up to 96% means you lose less energy when performing repeated battery cycling, feeding sunk energy back into the local grid.



Battery Recycling
Recover energy from batteries at their end of life before being sent to recycling. Autoranging capability allows the maximum possible discharge current down to 2 V while the regenerative capability feeds recovered energy back into the grid with 96% efficiency.



3 Channels multiply your throughput

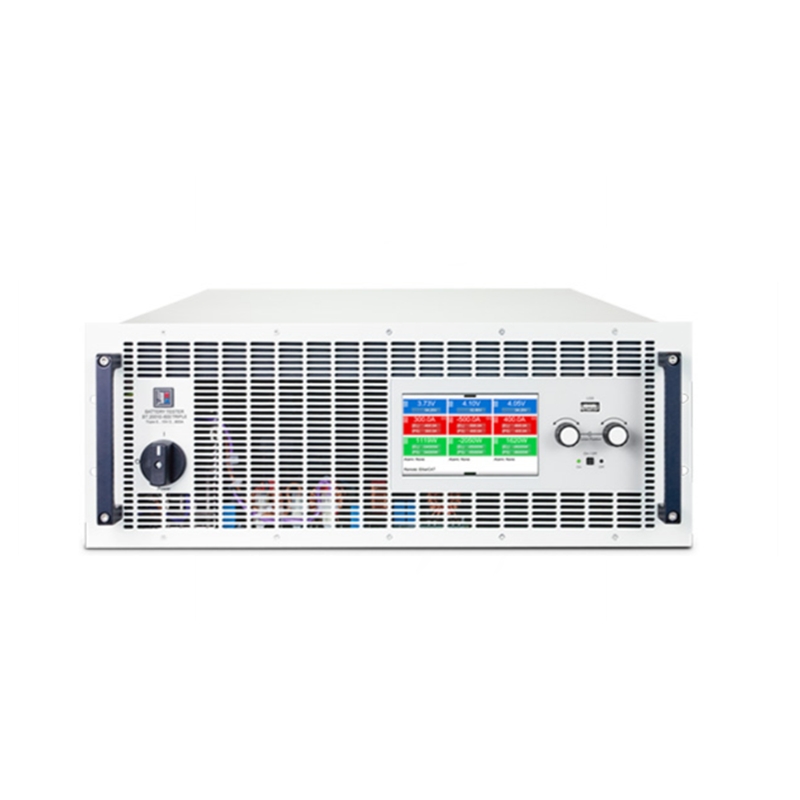

The EA-BT 20000 Triple battery tester brings 3 10kW channels to a single 4U instrument. Each channel can be controlled individually to maximize test throughput, or paralleled together for higher current when test needs require.
