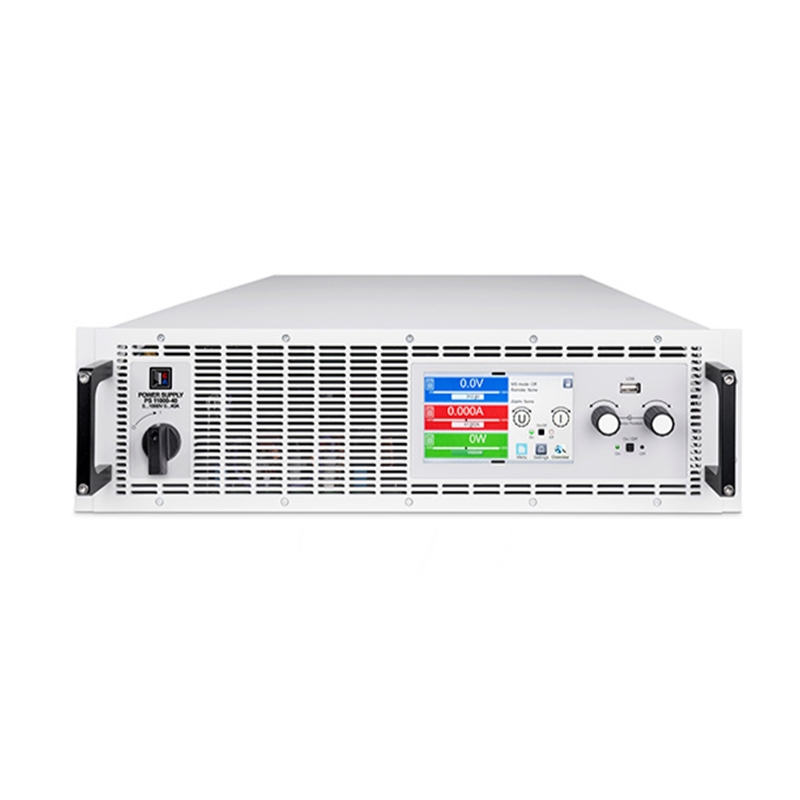

EA-PSI 10000 Series Programmable Power Supplies

The EA PS and PSI programmable power supplies range in power from 1500W devices up to 30kW in a single chassis and feature 5″ TFT Gorilla® Glass touchscreen displays for intuitive control and test setup. The power supplies can be paralleled for up to 3.84MW in output power at up to 2000VDC. The PSI Series comes standard with a built-in function generator capable of creating arbitrary waveforms, included test routines for battery test, fuel cell simulation, PV solar array simulation with MPP tracking, and other enhanced capabilities over the PS Series

Category: Tags: , , , , , , , , , ,
Model Power Voltage Current Range
EA-PSI 10000 3U 0–5 kW /0–10 kW /0–15 kW 0–60 V up to 0–2000 V 0–20 A up to 0–510 A
EA-PSI 10000 2U 0–1.5 kW /0–3 kW 0–60 V up to 0–1500 V 0–6 A up to 0–120 A
EA-PSI 10000 4U 0–30 kW 0–60 V up to 0–2000 V 0–40 A up to 0–1000 A
EA-PS 10000 4U 0–30 kW 0–60 V up to 0–2000 V 0–40 A up to 0–1000 A
EA-PS 10000 3U 0–5 kW /0–10 kW /0–15 kW 0–60 V up to 0–2000 V 0–20 A up to 0–510 A
EA-PS 9000 1U 0–1.5 kW /0–3 kW 0–80 V up to 0–750 V 0–6 A up to 0–100 A
EA-PS 10000 2U 0–1.5 kW /0–3 kW 0–60 V up to 0–1500 V 0–6 A up to 0–120 A



Autoranging Gives Flexibility
  • EA Elektro-Automatik products have autoranging, which allows the supply or load to operate at max power across a range of voltages and currents, down to 33% of the rated output maximum.
  • Compare this to traditional power supplies, which can only output their rated power at their max voltage and max current. Applying the maximum voltage to a device under test (DUT) is rare, which means most of the time, that supply is not being used to its full potential.
  • How does it work? EA sources automatically offer more current at lower voltages (or more voltage at lower currents), allowing the supply to continue outputting the rated power. This allows a single source to address multiple voltage and current combinations that would otherwise require multiple supplies.



Built–In Function Generator
  • Simplifies Setups Many EA supplies and loads include an integrated function generator that can be used to drive the voltage or current output.
  • All the typical AFG waveforms are available as well as arbitrary capability with sequencing for creating more custom output waveforms.
  • This AFG capability scales with multiple supplies in parallel.
  • The function generator allows the supply to simulate or test complex behaviors like: Simulating a solar cell with accurate open circuit voltage, short circuit current, and maximum power point (MPP) voltage and current.
  • Testing inverter efficiency to CSN EN 50530 standards. Testing LV123, LV124 and LV148 standards for automotive suppliers.



Control the way you Control
  • Using the right control interface simplifies setup and reduces troubleshooting, so the EA-10000 Series supports the AnyBus system allowing for field installable communication options for common industrial interfaces like ProfiNet, CANopen, Modbus-TCP, DeviceNet, EtherCAT, RS-232, and more. These are in addition to standard included interfaces like USB and Ethernet.
