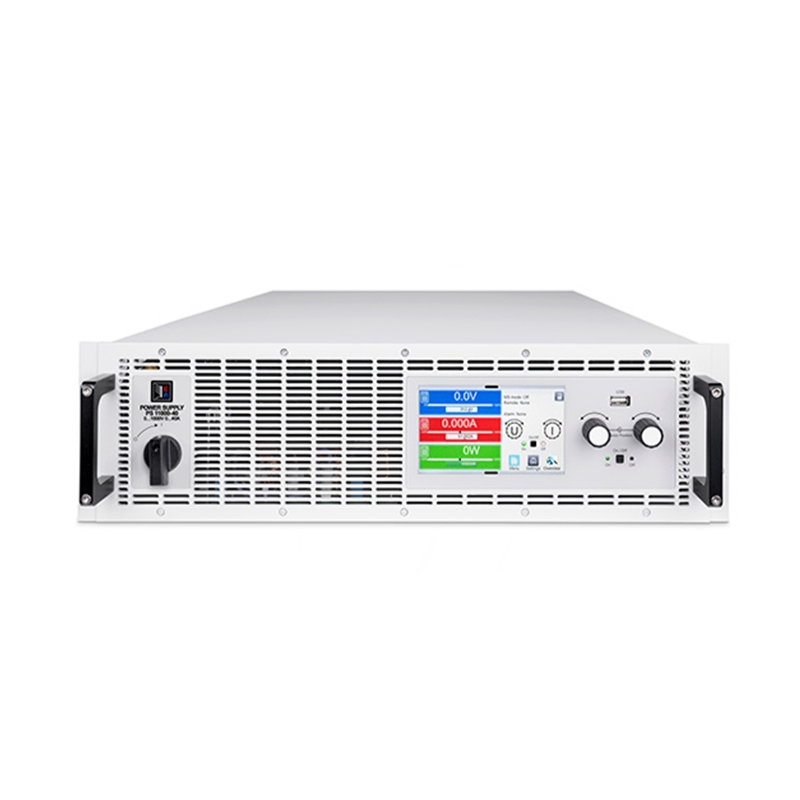

EA-PSB Bidirectional Power Supplies

The EA 20000 Series and 10000 Series bidirectional DC power supplies bring a host of capabilities and efficiencies. Bidirectional regenerative supplies are more cost-effective and environmentally friendly because they recover energy and feed it back into the grid with >96% efficiency to reduce heat, noise and HVAC costs. True autoranging delivers maximum power across a wider range of voltage and current values while a suite of optional control interfaces enables computer control in near any manufacturing environment.

Category: Tags: , , , , ,
Model Power Voltage Current Range Channels
EA-PSB 20000 Triple 4U 0–10 kW 0–60 V up to 0–920 V 0–40 A up to 0–340 A per channel 3 Channels
EA-PSB 20000 Triple 3U 0–500 W 0–60 V up to 0–920 V 0–20 A up to 0–170 A per channel 3 Channels
EA-PSB 10000 4U 0–30 kW 0–60 V up to 0–2000 V 0–40 A up to 0–1000 A per channel 1 Channel
EA-PSB 10000 3U 0–5 kW /0–10 kW /0–15 kW 0–10 V up to 0–2000 V 0–20 A up to 0–170 A per channel 1 Channel
EA-PSB 10000 2U 0–1.5 kW /0–3 kW 0–10 V up to 0–1500 V 0–6 A up to 0–120 A per channel 1 Channel



PSB 10000 Series
Technical Specifications

  • Power: from 1500 W to 30000 W
  • Voltages: 0-60 V DC to 0-2000 V DC
  • Current: 0-6 A to 0-1000 A

Highlights

  • Bidirectional
  • Autoranging
  • Ethernet, USB, and analog interface
  • Optional plug and play interfaces available
  • Battery simulation and Fuel Cell simulation



PSB 20000 Triple Series
Technical Specifications

  • Power: from 0-5 kW to 0-10 kW
  • Voltages: 0-60 V to 0-920 V
  • Current: 0-20 A to 0-340 A

Highlights

  • 3 Independent, fully isolated bidirectional channels
  • 1ms communication speed
  • USB, Ethernet, EtherCAT, CAN FD interfaces
  • 208V US 3U version provides full power
