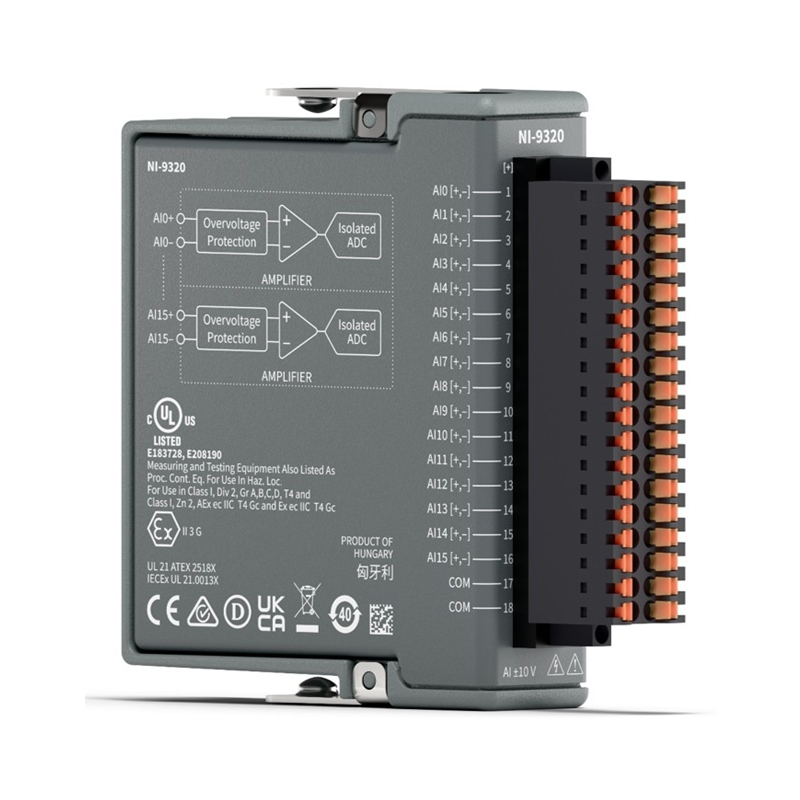

NI 9320 Spring Terminal, +/-10V, 16-bit, 200 kS/s/ch, 16-ch, simultaneous AI C Series Module (790078-01)

NI 9320 SPRING TERMINAL, +/-10 V, 200 kS/s/ch, 16-Bit, Simultaneous Input, 16-Channel C Series Voltage Input Module
The NI9320 performs differential analog input measurements on all 16 channels simultaneously with 250 Vrms CAT II Ch-Earth Ground isolation. It features a 16-bit ADC, very low noise, and a 2-year calibration interval. The module can generate 6.4 MB/s of data at the maximum sampling rate.

Category: Tags: , , , ,



Key product
Maximum Number of Differential Analog Input Channels: 16
Conformal Coated: No
Analog Input Voltage Range: -10 V to 10 V
Enclosed: Yes
Analog Input Resolution: 16 bits
Maximum Sample Rate: 200 kS/s/ch
Analog Input Isolation: 250 Vrms Ch-Earth Ground Isolation
Maximum Number of Single-Ended Analog Input Channels: 0
Front Connection Type: Spring Terminal
Simultaneous Sampling: Yes
Supported Hardware Platform: C Series
