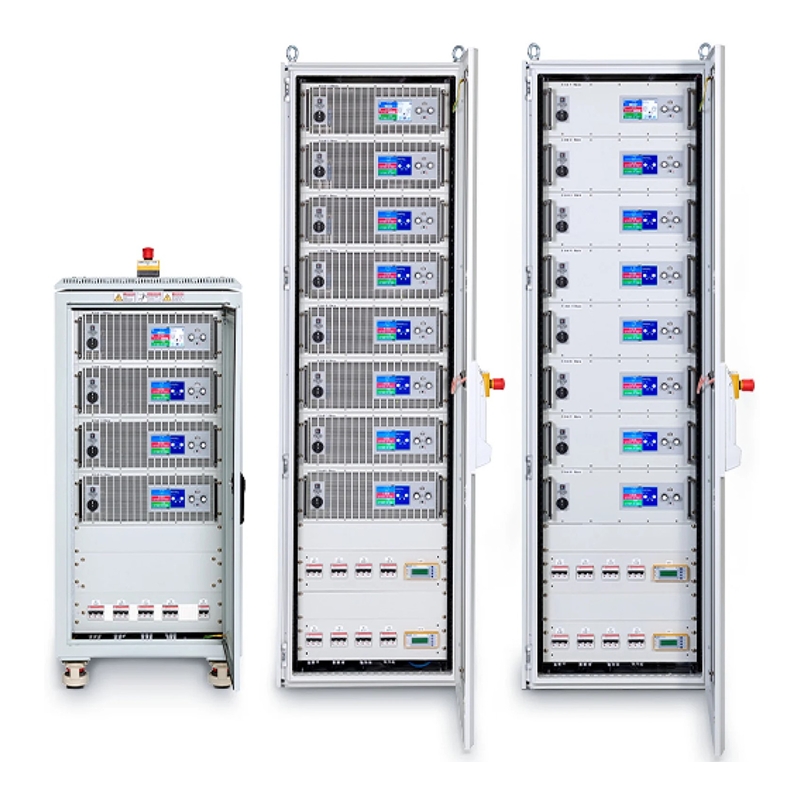

EA High Power DC Racks

Configure 3U, 4U and 6U devices into 42U, 38U, 24U and 15U racks. Combine EA-10000 and EA-10000 Industrial series bidirectional power supplies, programmable power supplies, or regenerative loads. System performance can be increased by connecting devices in parallel. In a 42U rack with 5 units of 60 kW you can reach 300 kW, for the maximum power of 3.84 MW you can connect up to 64 units in 13 racks

Category: Tags: , , , ,
Model Power Voltage Current Range Channels
EA-FCTS 20920-720 0–180 kW 0–920 V 0–720 A per channel 1 Channel
EA-BCTS 20010-600-18 0–6 kW 0–10 V 0–600 A per channel 18 Channels
EA-BMTS 20200-840-2 0–60 kW 0–200 V 0–840 A per channel 2 Channels
EA-BPTS 20920-720 0–180 kW 0–920 V 0–720 A per channel 1 Channel



High–Efficiency Configurable Power Solutions
Tektronix EA configurable systems deliver scalable, high-density DC power in compact footprints. Available in multiple rack sizes and device configurations, these turnkey solutions offer flexibility for demanding applications.



At a Glance
  • Racks: 42U, 38U, 24U, 15U
  • Devices: 3U, 4U, 6U; bidirectional, programmable, regenerative loads
  • Power: Up to 300 kW (1×42U); 3.84 MW (13 racks, 64 devices)
  • Series: EA-10000, EA-10000 Industrial, EA-PSB 20000, EA-BT 20000 (air/water-cooled)
  • Footprint: 39.4″ depth, 19″ cabinets
  • Delivery: Turnkey systems
  • Ideal For: DC high-power applications
